- Product Name： DMH/S Series CNC High-speed drilling machine( deep hole)
- Product Model：DMH5000/2S
- Applicable Industry：drilling processing of tower connection flange of wind power；drilling processing of the heat exchanger tube plates、 clapboards and baffle in the power
Product feature

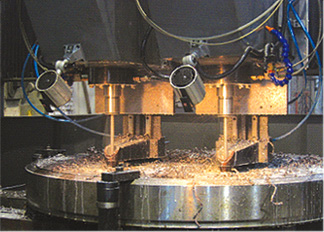

★★★suitable for a variety of deep hole drills, easy to be cooling and chip conveying, high processing efficiency

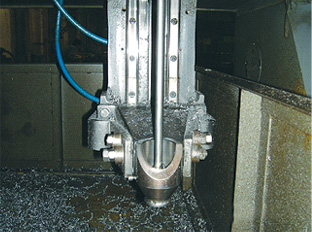

★★★the unique and patented guiding mechanism which prevent the drill from bending and vibrating.
★★★identify the CAD graphic files intelligently,and automatically convert into the processing programm; support off-line programming
★★★the most optimal processing sequencing, the most optimal path control
Product Basic Parameter
|
Model |
DMH3000/2S | |
|
work piece |
Max. Length x Width (center points of two hole)(mm) |
3000 x 3000 |
|
Max. thickness (mm) |
350 | |
|
Worktable |
Distribution form of T notch |
Double cross shape or logitudinal and d horizontal |
|
Power head |
Quantity |
2 |
|
Taper hole of spindle |
BT50 | |
|
Max. drilling diameter (mm) |
Φ70(based on the spindle form) | |
|
Rotation speed ( stepless conversion) (r/min) |
50-3000 | |
|
Motor power (kw) |
2 x 30 | |
|
Longitudinal movement of gantry ( X axis ) |
Max. stroke (mm) |
3000 |
|
Movement speed (m/min) |
0-8 | |
|
Servo motor power(kw) |
2 x3 | |
|
Transverse movement of power head ( Y axis) |
Max. distance between spindles(mm) |
3000 |
|
Movement speed(m/min) |
0 - 8 | |
|
Servo motor power(kw) |
2 x 3 | |
|
Feeding movement of vertical ram (Z axis) |
Max. stroke(mm) |
600 |
|
Feeding speed (m/min) |
0 - 8 | |
|
Servo motor power (kw) |
2 x 3 | |
|
Positioning precision |
X axis and Y axis(mm) |
≤ 0.1/ (Full length) |
|
Re-positioning precision |
X axis and Y axis(mm) |
≤ 0.05 |
|
Hydraulic system |
Hydraulic pump pressure / flux (Mpa) / (L/min) |
7/30 |
|
Motor power of hydraulic pump (kw) |
3.75 | |
|
Conveying and cooling |
Type of chip-conveyor |
Chain-plate type |
|
Quantity of chip-conveyor |
2 | |
|
Speed of chip-conveyor |
1 | |
|
Motor power of chip-conveyor (kw) |
2 x0.75 | |
|
Motor power of cooling pump(kw) |
2 x 4 +2.2 | |
