- Product Name： CNC 3-D drilling Machine
- Product Model：BDM750，BDM1050，BDM1260

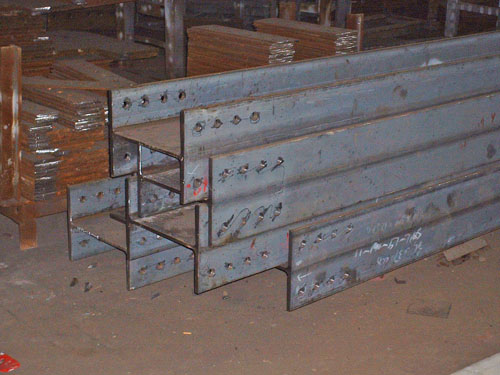

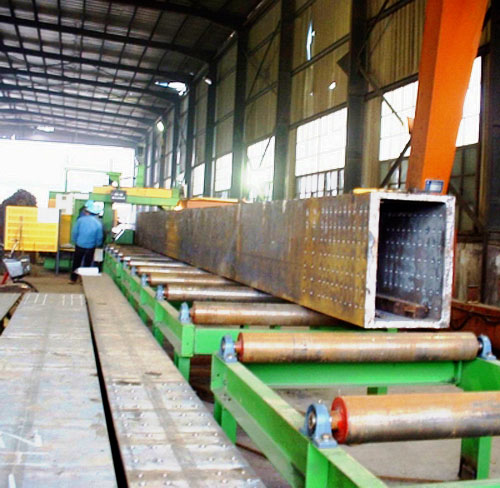

- Applicable Industry：Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage、petrol platform
Product feature

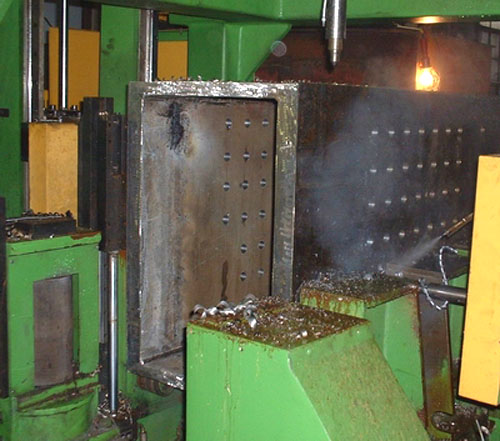

| ◆ | Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment |
| ◆ | Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head |
| ◆ | No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency |
| ◆ | CNC & PLC systems, CRT display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing |
| ◆ | Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize. |
| ◆ | Each drilling head, equipped with professional main shaft speed-reducing-motor from SEW, Germany |
| ◆ | Main machine, hydraulic pressure, electric components are famous products domestic and abroad |
Product Basic Parameter
|
Subject |
BDM750 |
BDM1050 |
BDM1260 | |||
|
Size of H-beam
Web(H)×flang(W)mm |
Max. |
700×400 |
1000×500 |
1250×600 | ||
|
Min. |
200×75 |
200×75 |
200×75 | |||
|
Dia. Of drilling(mm) |
Vertical drilling |
φ12～φ33.5 |
φ12～φ33.5 |
φ12～φ40 | ||
|
Horizontal drilling |
φ12～φ31.5 |
φ12～φ31.5 | ||||
|
Number of stroke spindle |
One vertical ,two horizontal(left and right),3 in all | |||||
|
spindle rotation speed(r/min) |
180～650(frequency conversion) | |||||
|
Feeding speed (mm/min) |
20～200 | |||||
|
Feeding distance (mm) |
Vertical spindle |
240 |
240 |
240 | ||
|
Horizontal spindle |
150 |
150 |
180 | |||
|
Gross power rating (KW) |
20 |
25 |
28 | |||
|
External dimension L×W×H (mm) |
4430×2080×3030 |
4730×2080×3130 |
4930×2080×3230 | |||
|
Gross weight of machine ㎏ |
5800 |
6000 |
7000 | |||
